Wellhead Products

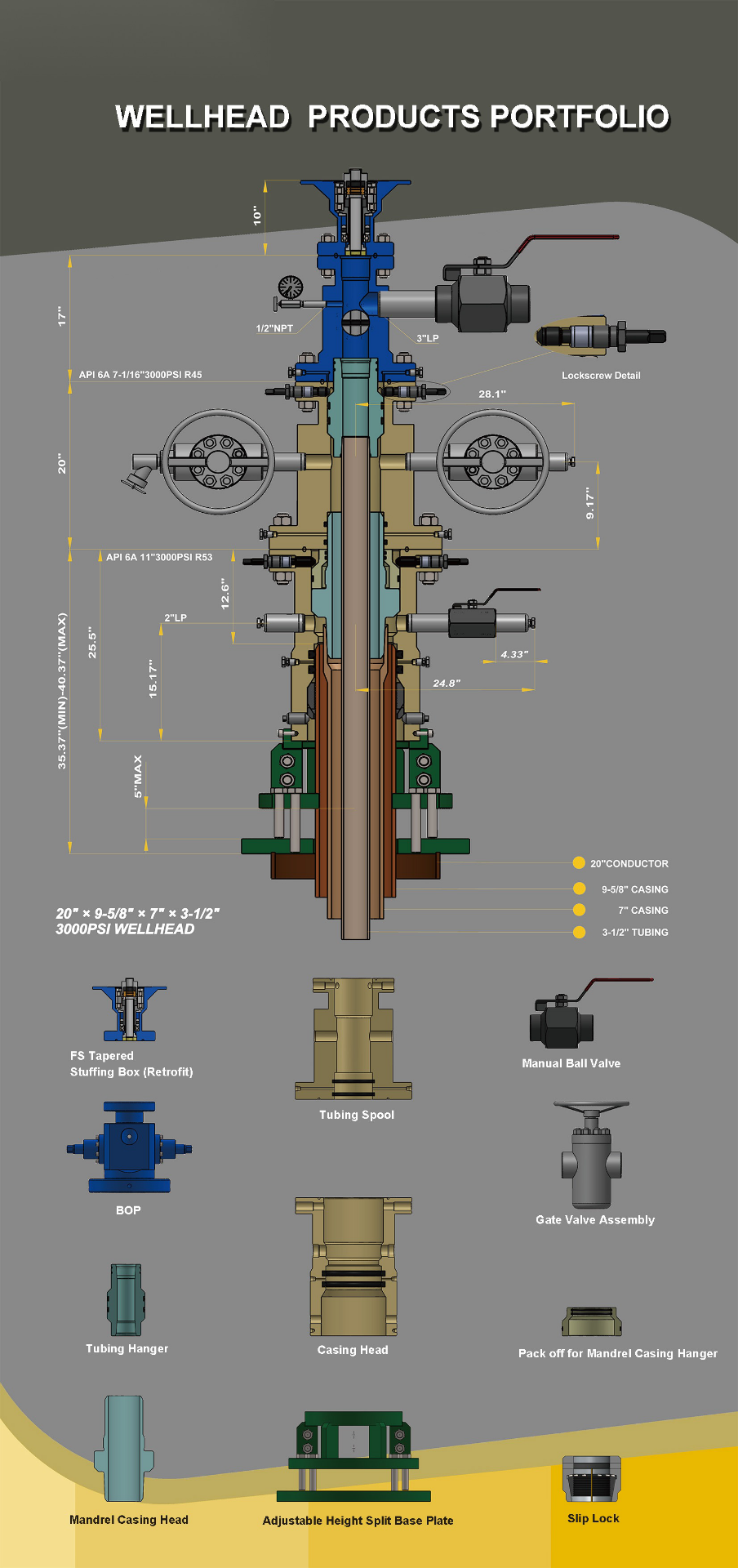

20" × 9-5/8" × 7" × 3-1/2", 3000 PSI wellhead system built to API 6A specifications (7-1/16" 3000PSI R45 and 11" 3000PSI R53). Rated 35.37" (min) to 40.37" (max) overall height with a 5" max adjustable base, designed for multi-string casing programs.

Included components: FS Tapered Stuffing Box (Retrofit), Tubing Spool, Manual Ball Valve, BOP, Gate Valve Assembly, Tubing Hanger, Casing Head, Mandrel Casing Head, Pack-off for Mandrel Casing Hanger, Adjustable Height Split Base Plate, Slip Lock.

Ideal for multi-casing string wells (20" conductor, 9-5/8" casing, 7" casing, 3-1/2" tubing) requiring a 3000 PSI-rated wellhead assembly with adjustable base height.
